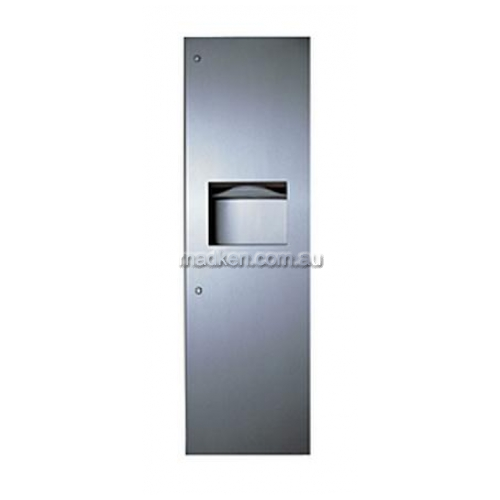

Item number - B39003 : Recessed


MATERIALS:

Cabinet - 18-8 S, type-304, heavy-gauge stainless steel. All-welded construction. Exposed surfaces have satin finish.
Door - 18-8 S, type-304, 18-gauge (1.2mm) stainless steel with satin finish. 9/16'' (14mm) 90deg return edges for maximum rigidity. Secured to cabinet with a concealed, full-length, stainless steel piano-hinge. Equipped with two tumbler locks keyed like other Bobrick washroom accessories.
Paper Towel Dispenser - 18-8 S, type-304, 22-gauge (0.8mm) stainless steel with satin finish. Rounded towel tray has hemmed opening to dispense paper towels without tearing.
Capacity: 600 C-fold, 800 multifold, or 1100 singlefold paper towels.
Waste Container - Removable, leakproof, rigid molded plastic. Capacity: 12-gal. (45.4-L).


OPERATION:

Paper towel dispenser adjusts to accommodate C-fold, multifold, or singlefold paper towels by repositioning built-in adapter tabs in one of six slots. No additional towel trays or adapters required. Waste receptacle is serviced by opening door and removing waste container.


INSTALLATION:

Provide framed rough wall opening 16'' wide x 54-3/4'' high (405 x 1390mm). Minimum depth required from finish face of wall is 7-7/8'' (200mm). Allow clearance for construction features that may protrude into rough wall opening from opposite wall. Coordinate with
mechanical engineer to avoid pipes, vents, and conduits. If unit projects above top of wainscot, provide aluminum channel or other filler to eliminate gap between flange and finish face of wall. Mount unit in wall opening with shims between framing and cabinet at all points indicated by an S, then secure unit with #8 x 1-1/4 (4.2 x 32mm) sheet-metal screws (not furnished).


SPECIFICATION:

Recessed paper towel dispenser and waste receptacle shall be type-304 stainless steel with all-welded construction; exposed surfaces shall have satin finish. Door shall be 18 gauge (1.2mm); have 9/16'' (14mm) 90deg return edges; be secured to cabinet with a concealed, full-length, stainless steel piano-hinge; and equipped with two tumbler locks keyed like other Bobrick washroom accessories. Paper towel dispenser shall be equipped with a six-position adapter that is adjustable to dispense 600 C-fold, 800 multifold, or 1100 singlefold paper towels. Waste receptacle shall be furnished with a removable, leakproof, rigid molded plastic waste-container with a minimum capacity of 12-gal. (45.4-L). Manufacturer's service and parts manual shall be provided to the building owner/manager upon request by the manufacturer.



Code	Size	Dimensions	Weight	Colours
B39003	Recessed		15.00 (kgs)	Satin stainless steel
