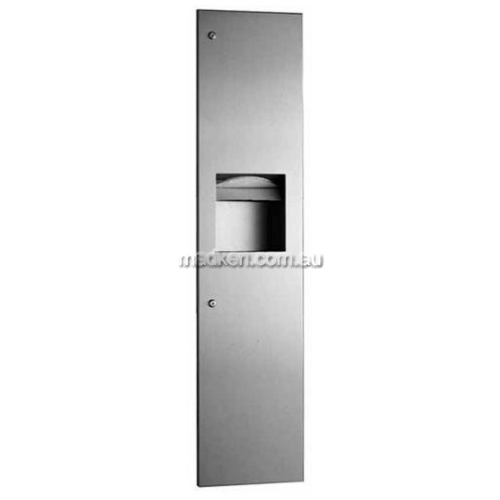

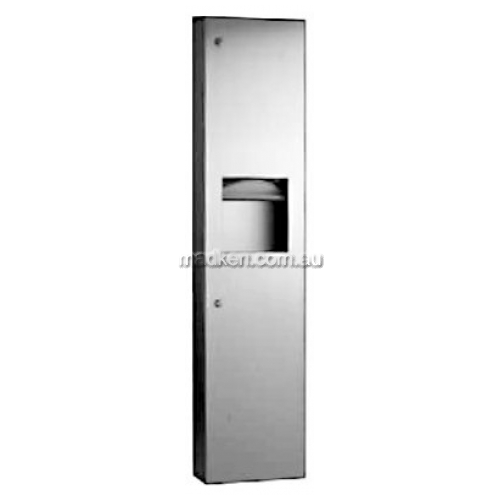

Item Number:

B3803


Key Features :

Satin finish Stainless Steel
Capacity: 600 C-fold, 800 multifold, or 1100 singlefold paper towels
Waste Capacity: 24L
330mm W x 1400mm H x 140mm D
Requires 145mm minimum recessed depth
Equipped with 2 tumbler locks


MATERIALS

Cabinet : 18-8 S, type-304, heavy-gauge stainless steel. All-welded construction.

Door : 18-8 S, type-304, 18-gauge (1.2mm) stainless steel. 9/16 (14mm) 90deg return for maximum rigidity. Secured to cabinet with a concealed, full-length, stainless steel piano-hinge. Equipped with a stainless steel cable door-swing limiter and two tumbler locks
keyed like other Bobrick washroom accessories.

Paper Towel Dispenser : 18-8 S, type-304, 22-gauge (0.8mm) stainless steel. Rounded towel tray has hemmed opening to dispense paper towel without tearing. Capacity: 600 C-fold, 800 multifold, or 1100 singlefold paper towels.

Waste Container : Leak-proof rigid molded plastic. Removable for servicing.

Capacity 24.0 Litre.


OPERATION

Paper towel dispenser is adjustable to dispense C-fold, multifold, or singlefold paper towels without use of additional adapters or towel trays. To service waste receptacle, unlock door with key provided and remove waste container. Cable door-swing limiter
prevents damage to washroom accessories and walls.


INSTALLATION

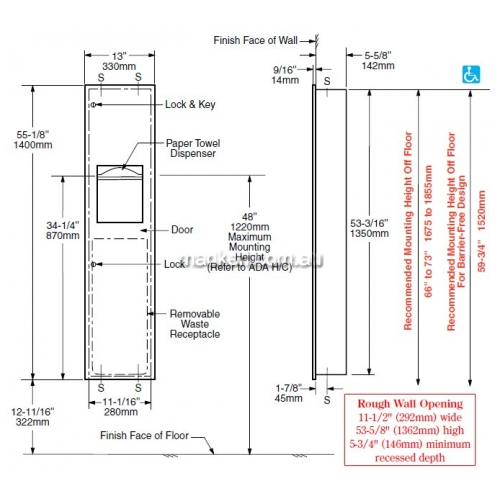

Provide framed rough wall opening 11-1/2'' wide x 53-5/8'' high (290 x 1360mm). Minimum recessed depth required from finish face of wall is 5-3/4'' (145mm). Allow clearance for construction features that may protrude into rough wall opening from opposite wall. Coordinate with mechanical engineer to avoid pipes, vents, and conduits. If unit projects above top of wainscot, provide aluminum channel or other filler to eliminate gap between flange and finish face of wall. Mount cabinet with shims between framing and cabinet at all points indicated by an S, then secure with #8 x 1-1/4 (4.2 x 32mm) sheet-metal screws (not furnished).


SPECIFICATION

Recessed paper towel dispenser and waste receptacle shall be type-304 stainless steel with all-welded construction; exposed surfaces shall have satin finish. Door shall be 18 gauge (1.2mm); have 9/16'' (14mm) 90deg return edges; be secured to cabinet with a concealed, full-length stainless steel piano-hinge; and equipped with a stainless steel cable door-swing limiter and two tumbler locks keyed like other Bobrick washroom accessories. Paper towel dispenser shall be capable of dispensing 600 C-fold, 800 multifold, or 1100 singlefold paper towels. Waste receptacle shall be furnished with a removable, leak-proof, rigid molded plastic waste-container with a capacity of 24 Litre



Code	Size	Dimensions	Weight	Colours
B3803	Recessed	330mm W x 1400mm H x 140mm D	15.00 (kgs)	Satin Stainless Steel
