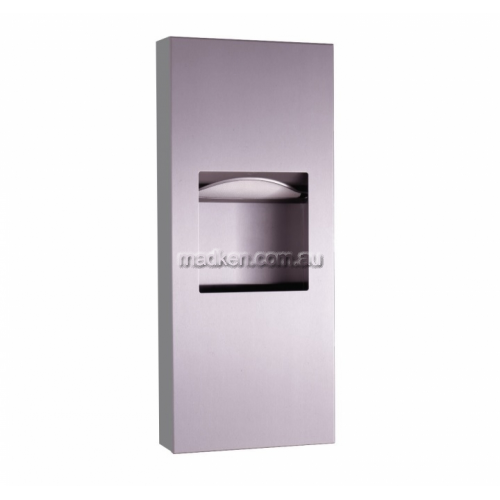

Item number:

B36903

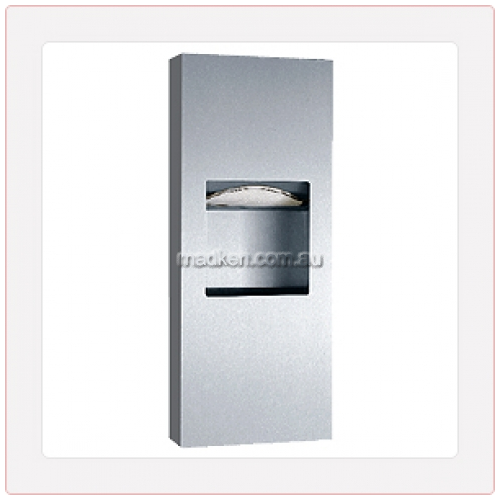

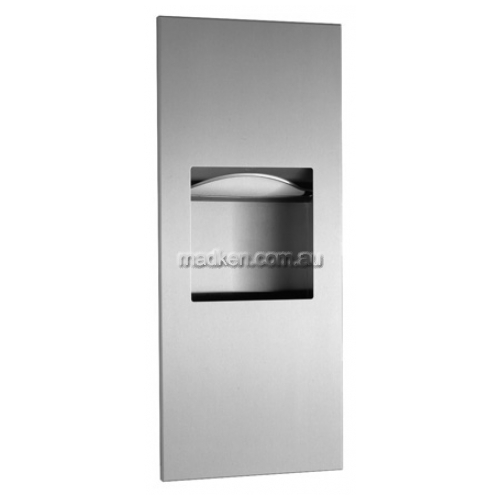

Model B36903
Satin finish Stainless Steel
Capacity: 300 C-fold or 400 multifold paper towels
Waste Capacity: 6L
330mm [W] x 790mm [H] x 90mm [D]
Equipped with friction catch


MATERIALS

Cabinet
18-8 S, type-304, heavy-gauge stainless steel. All-welded construction.

Flange

18-8 S, type-304, 22-gauge (0.8mm) stainless steel with satin finish. Drawn, one-piece, seamless construction.

Door

18-8 S, type-304, 18-gauge (1.2mm) stainless steel. 9/16 (14mm) 90deg return edges for maximum rigidity. Secured to cabinet with a concealed, full-length stainless steel piano-hinge. Equipped with a stainless steel cable door-swing limiter and friction catch.

Paper Towel Dispenser

18-8 S, type-304, 22-gauge (0.8mm) stainless steel. Capacity: 300 C-fold or 400 multifold paper towels.

Waste Container

Removable, leakproof, rigid molded plastic. Capacity 6.0 Litre.

OPERATION

Paper towel dispenser accommodates C-fold and multifold paper towels without adjustment or use of adapters. Waste receptacle is serviced by opening door and removing waste container. Door conceals flange from view. Cable door-swing limiter prevents
damage to washroom accessories and walls.

INSTALLATION

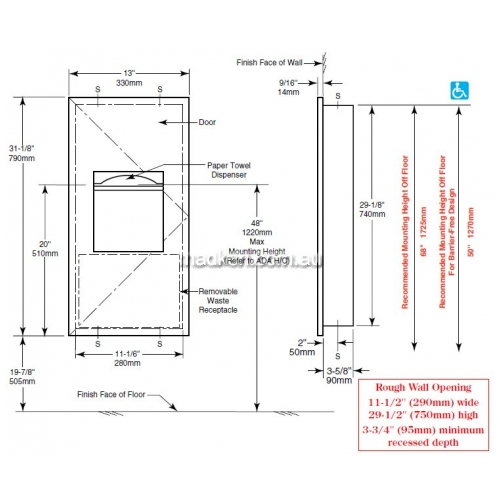

Provide framed rough wall opening 11-1/2 wide x 29-1/2 high (290 x 750mm). Minimum recessed depth required from finish face of wall is 3-3/4 (95mm). Allow clearance for construction features that may protrude into rough wall opening from opposite wall.
Coordinate with mechanical engineer to avoid pipes, vents, and conduits. If unit projects above top of wainscot, provide aluminum channel or other filler to eliminate gap between flange and finish face of wall. Mount cabinet with shims between framing and cabinet at all points indicated by an S, then secure unit with #8 x 1-1/4 (4.2 x 32mm) sheet-metal screws (not furnished).

SPECIFICATION

Recessed paper towel dispenser and waste receptacle shall be type-304 stainless steel with all-welded construction. Exposed surfaces shall have satin finish. Flange shall be drawn, one-piece, seamless construction. Door shall be 18 gauge (1.2mm); have
9/16 (14mm) 90deg return edges; be secured to cabinet with a concealed, full-length stainless steel piano-hinge; and equipped with a stainless steel cable door-swing limiter and friction catch. Door conceals flange from view. Paper towel dispenser shall be capable of dispensing 300 C-fold or 400 multifold paper towels without adjustment or use of adapters. Waste receptacle shall be furnished with a removable, leakproof, rigid molded plastic waste-container with a capacity of 1.6 gal. (6.0 L).

Recessed Paper Towel Dispenser And Waste Receptacle shall be Model B-36903 of Bobrick Washroom Equipment, Inc.



Code	Size	Dimensions	Weight	Colours
B36903	Recessed	330mm [W] x 790mm [H] x 90mm [D]	3.00 (kgs)	Satin Stainless Steel
