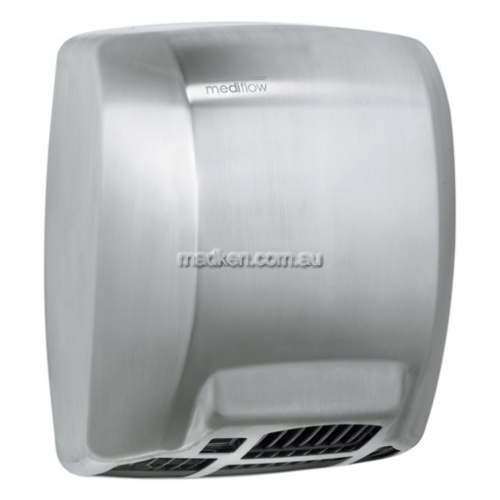

Item Code: M02ACS

Suitable for disabled washrooms (with recess kit, sold separately)

Key Features:
Warm air hand dryer.
Sensor operated by hand approximation.
Airflow temperature electronic regulation.
Maximum power and airflow.
Maximum robustness and vandal-proof.
Suitable for very high traffic facilities.
Recessed kit that conforms to ADAAG projection also available (sold separately)
It normally goes along with a soap dispenser.


IDEAL FOR:
High traffic settings,especially areas where noise is an issue e.g.hotels, airports, clubs,
offices, cinemas, etc.


COMPONENTS AND MATERIALS
Satin stainless steel body
Cover fixed to the base by means of 2 vandal-proof lock screws and lock with special Mediflow wrench.
Fire resistant plastic UL 94-V0 base and fan scroll, with 4 8 mm holes for wall mounting.
Fire resistant plastic UL 94-VO fan scroll.
Universal brush motor, 4500 rpm, F class, incorporates a self-resetting safety thermal cut-off at 120 degC.
Aluminium centrifugal double symmetrical inlet fan wheel.
Fe, Al & Cr taped wire heating element mounted on a mica frame that incorporates a self-resetting safety thermal cut-off at 110 degC. Automatic disconnection 1/2 second before motor stops.
Logic Dry technology: Automatic regulation of air temperature based on ambient temperature.
Selective detection of fixed targets and automatic disconnection after 120 seconds of continuous use.
Fully adjustable (5 - 20 cm) IR electronic detection sensor.
Adjustment is by means of a potentiometer.
Sensors come with a polycarbonate viewing window.
Four silent blocks to eliminate vibrations.

TECHNICAL SPECIFICATIONS
Voltage 220-240 V
Frequency 50/60 Hz
Electrical isolation Class II
Dimensions 272mm W x 325mm H x 164mm D
Weight 4.85 kg (M02A)
4.25 kg (M02AC, ACS)
Effective airflow 450 m3/h (7.500 l/min)
Nominal airflow 540 m3/h (9000 l/min)
Air velocity 95 km/h
Total power 250- 2750 W
Motor power 250 W
Heating element power 0- 2500 W
Consumption 1.1 - 12 A RPM 4500
Air temperature (10 cm distance / 21 degC) 49 degC
Drying time: 29 sec (Drying time may vary with ambient conditions)
Noise level (at 2 m) 65 dB (Tested in a sound proof room does not include environmental factors)
Protection level IP23
Finishes:Stain SS

We distribute Mediclinics Hand Dryers - among the best hand dryers in the world. We have the biggest range, the best warranties and three of the fastest, most energy efficient, high-speed hand dryers in Australia.



Code	Size	Dimensions	Weight	Colours
M02ACS	325mm H x 164mm D x 275mm W	272W x 320H x 164D (cm)	5.00 (kgs)	Satin Stainless Steel
