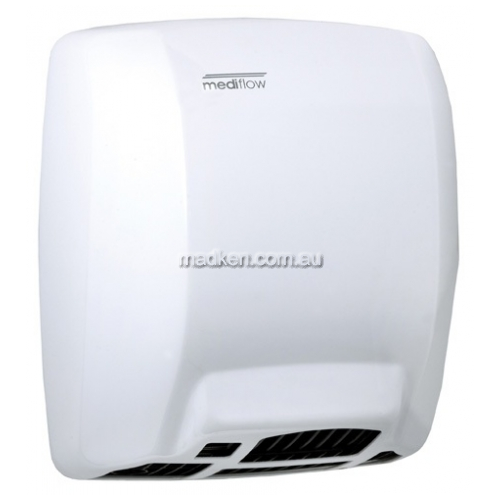

Item Code: M02A

IDEAL FOR:
High traffic settings,especially areas where noise is an issue e.g.hotels, airports, clubs, offices, cinemas, etc.
Suitable for disabled washrooms (with recess kit, sold separately)


Key Features:

Warm air hand dryer.
Sensor operated by hand approximation.
Airflow temperature electronic regulation.
Maximum power and airflow.
Maximum robustness and vandal-proof.
Suitable for very high traffic facilities.
Recessed kit that conforms to ADAAG projection also available (sold separately).
It normally goes along with a soap dispenser.

Components and Materials:
Steel one-piece high quality and high impact cover white epoxy coated, 1,9 mm thick.
Cover fixed to the base by means of 2 vandal-proof lock screws and lock with special Mediflow
wrench.
Fire resistant plastic UL 94-V0 base and fan scroll, with 4 8 mm holes for wall mounting.
It includes silent-blocks to damp mechanical vibrations.
Universal brush motor, 4.500 rpm, F class, includes a self-resetable thermal cut-off at 120 degC.
Aluminium centrifugal double asymmetrical inlet fan wheel.
Fe, Al & Cr taped wire heating element mounted on a mica frame that incorporates a self-resetable thermal cut-off at 110 degC.
Automatic disconnect system before motor stop.
Automatic regulation of air temperature on ambient temperature.
Fully adjustable (5-20 cm) IR electronic detection sensor by means of a potentiometer.
Sensor with polycarbonate viewing window.
Selective detection of fixed targets and automatic disconnection system after 120 seconds of continuous use.

Technical Specifications:
Voltage - 220-240 V
Frequency - 50/60 Hz
Electrical isolation - Class II
Dimensions - 320x 272x 164 mm
Weight - 4,85 Kg
Effective airflow - 450 m3/h / 7.500 l/min
Nominal airflow - 540 m3/h / 9000 l/min
Air velocity - 95 Km/h
Total power - 250- 2750 W
Motor power - 250 W
Heating element power - 0- 2500 W
Consumption - 1,1-12 A
RPM - 4500
Air temperature(10 cm distance / 21 degC) - 49 degC
Noise level (at 2 m) - 65 dB (Tested in a sound proof room does not include environmental factors)
Protection level - IP23

Operation
Place the hands under the air outflow valve. The dryer will start automatically, and go on with no interruption as long as the hands are
kept in the detection range of the sensor. The appliance will stop 2 seconds after the hands are removed from the airflow. As a safety
measure, the appliance will stop after 120 seconds.



Code	Size	Dimensions	Weight	Colours
M02A	325mm H x 164mm D x 275mm W	272W x 320H x 164D (cm)	4.00 (kgs)	White epoxy
