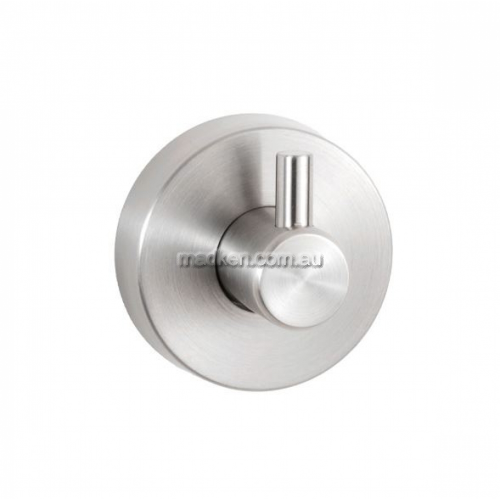

BOBRICK B542 COAT HOOK

New stainless steel hook

Associated Categories

Product Information

Item Number:

* B542 : Satin


Key Features:

* Satin finish stainless steel
* Tredded flange conceals mounting plate
* 50mm W x 50mm H x 35mm D


Installation:

* For plaster or dry wall construction, provide concealed backing to comply with local building codes, then secure unit with sheet-metal screws (not furnished). For other wall surfaces, provide fiber plugs or expansion shields for use with sheet-metal screws (not furnished), or provide 3mm (1/8'') toggle bolts or expansion bolts.
* For partitions with particle-board or other solid core, secure with sheet-metal screws (not furnished), or provide through-bolts, nuts, and washers. For hollow-core metal partitions, provide solid backing into which the sheet-metal screws (not furnished) can be secured.


Specification:

* Coat Hook shall be type-304 stainless steel with satin-finish. Coat Hook shall have 19mm (3/4) diameter Post with 6.4mm (1/4) diameter Hook Pin. Concealed mounting flange shall be 5.6mm (7/32) thick stainless steel plate, 46mm (1-13/16) outside diameter and equipped with two screw holes for attachment and thread on outside edge to fasten cover. * Threaded flange cover shall be 1.4mm (17-gauge) stainless steel, 49mm (1-15/16) diameter and shall fasten over mounting flange to conceal mounting screws. Post and mounting flange are to be machined as one piece.


Material:

* Post - 18-8 S, type-304, 19mm (3/4) diameter, solid stainless steel rod. Post and Concealed MountingThreaded Flange are machined as one piece.
* Hook Pin - 18-8 S, type-304, 6.4mm diameter (1/4), solid stainless steel rod with satin-finish with thread to screw into Post.
* Concealed Mounting Threaded Flange - 18-8 S, type-304, 5.6mm (7/32) thick, stainless steel plate with thread on outside edge for fastening cover. 46mm (1-13/16) outside diameter with two holes for attachment to wall.
* Threaded Flange Cover - 18-8 S, type-304, 1.4mm (17-gauge), machined stainless steel with satin-finish. 49mm (1-15/16) diameter 13mm (1/2) deep. Cover fastens over mounting flange to conceal mounting screws.




Code Size Dimensions Weight Colours
B542 50W x 50H x 35D 0.50 (kgs) Satin Stainless Steel

Product Size, Colour and Price Options

Size Available Colours Our Price $
50W x 50H x 35D Satin Stainless Steel
$90.00
