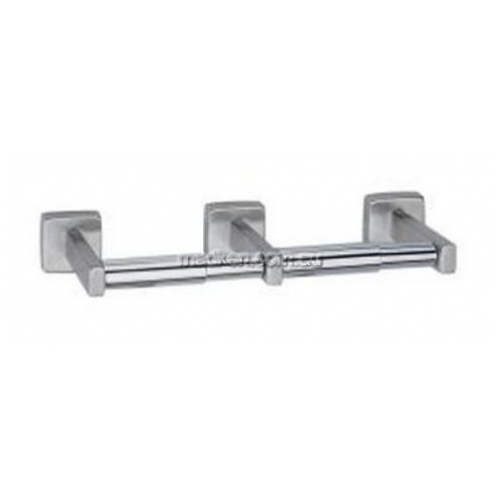

BOBRICK B686 DOUBLE TOILET ROLL HOLDER

Surface Mounted Satin Stainless Steel

Associated Categories

Product Information

Item Numbers:

* B686 (polished stainless steel)
* B686.60 (polished stainless steel with theft resistant spindles)
* B6867 (satin finish stainless steel)


Material:

* Flanges and Support Arms (3) '- 18'8 S type'304 22'gauge (0.8mm) stainless steel.
* Concealed 16'gauge (1.6mm) stainless steel mounting bracket is welded inside each flange. Secured to wall plate with set screw.
* Concealed Wall Plates (3) - 18'8 S type'304 16'gauge (1.6mm) stainless steel.
* Spindles (2) - Chrome'plated plastic. Equipped with heavy'duty internal springs.


Installation:

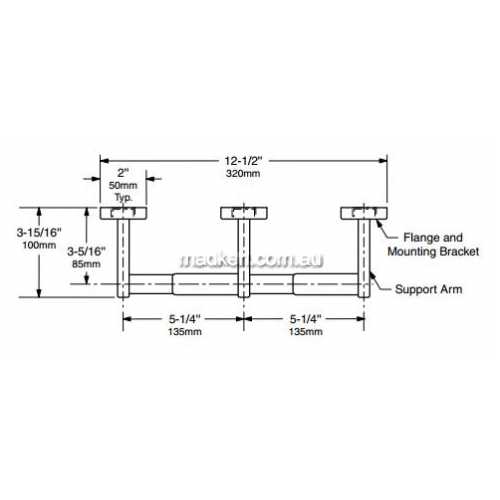

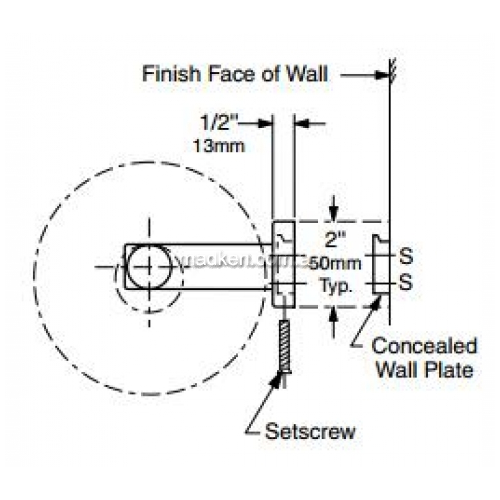

* To remove concealed wall plates from back of flanges and mounting brackets loosen set screws. Mount each wall plate with prongs at top; secure with sheet'metal screws furnished by manufacturer at points indicated by an S. Engage mounting brackets onto prongs of wall plate then secure into position by tightening setscrews at bottom of flanges. Note: Center'to'center of concealed wall plates must be within 1/16'' (1.6mm) of dimension shown.
* For partitions with particle'board or other solid core: Secure with sheet'metal screws furnished by manufacturer or provide through'bolts nuts and washers.
* For hollow'core metal partitions: Provide solid backing into which the furnished sheet'metal screws can be secured. If two units are installed back'to'back then provide threaded sleeves and machine screws for the full thickness of partition.
* For masonry walls: Provide fiber plugs or expansion shields for use with sheet'metal screws furnished by manufacturer or provide 1/8'' (3mm) toggle bolts or expansion bolts.
* For plaster or dry wall construction: Provide concealed backing to comply with local building codes then secure the unit with sheet'metal screws furnished.


Specification:
* Double'roll toilet tissue dispenser shall be type'304 stainless steel with satin finish. Unit shall accommodate two standard'core toilet paper rolls up to 5'1/2'' (140mm) diameter (1800 sheets). Flanges shall be equipped with concealed 16'gauge (1.6mm) stainless steel mounting brackets that are secured to concealed stainless steel wall plates with stainless steel set screws.
* Spindles shall be equipped with a heavy'duty internal spring. Manufacturer's service
and parts manual shall be provided to the building owner/manager upon request by manufacturer.




Code Size Dimensions Weight Colours
B6867
B686
B6867.60
B686.60
Dual Roll Holder 1.00 (kgs) Satin stainless steel
Polished Stainless Steel
Satin Finish with Theft Resistant Spindles
Polished Finish with Theft Resistant Spindles

Product Size, Colour and Price Options

Size Available Colours Our Price $
Dual Roll Holder Satin stainless steel
Polished Stainless Steel
Satin Finish with Theft Resistant Spindles
Polished Finish with Theft Resistant Spindles
$295.03
$314.59
$353.71
$373.27

Quantity


Select Size


Select Colour




Add Item to Cart

View My Cart
