RBA

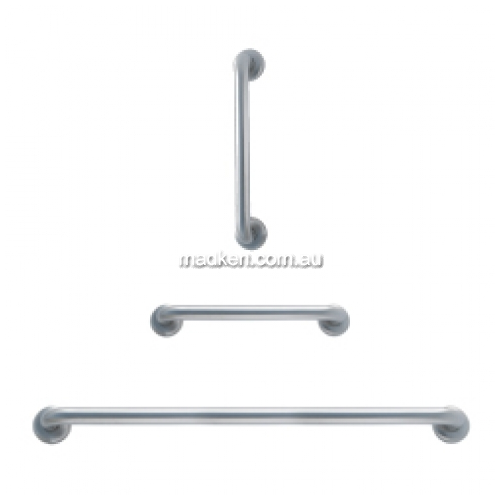

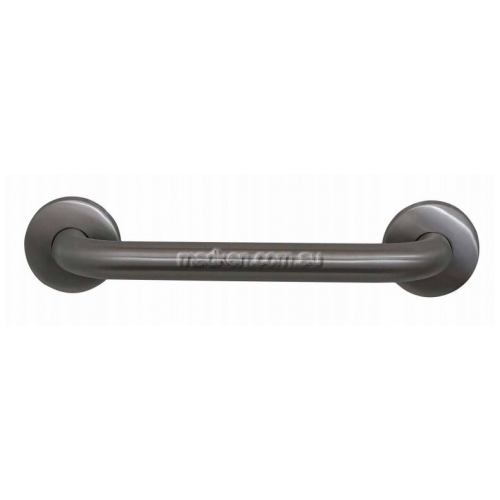

RBA RBA4000 GRAB RAIL STRAIGHT

Mounting screws concealed with a mounting flange giving a finished look

Associated Categories

Product Information

Item Number: RBA 4000 Series Straight Grab rails


RBA 4000 Available Models:

RBA4000-030 Straight Grab Rail 300mm
RBA4000-040 Straight Grab Rail 400mm
RBA4000-045 Straight Grab Rail 450mm
RBA4000-060 Straight Grab Rail 600mm
RBA4000-075 Straight Grab Rail 750mm
RBA4000-080 Straight Grab Rail 800mm
RBA4000-090 Straight Grab Rail 900mm
RBA4000-100 Straight Grab Rail 1000mm
RBA4000-120 Straight Grab Rail 1200mm


Materials and Features of the RBA 4000 Straight Grab Rail Series:

* Made from 304 satin stainless steel available in a variety of lengths - See above listing

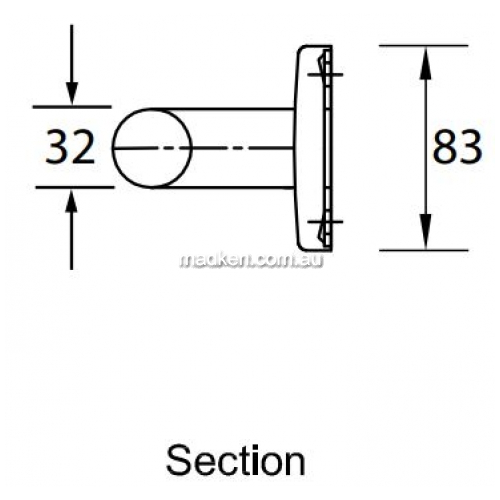

* Dimensions - 83mm diameter flange, 32 diameter tubing - various lengths
* Fixings are covered by the snap flange cover - concealed fixings add to the finish of the room
* The straight grab rail configurations can support loads of up to 113kg when installed correctly
* The RBA 4000 straight grab rail is AS1428.1-2009 Compliant
* Installation - Measure site, provide anchor device or backing, mount flanges to wall using fixings, slide covers over flanges ensuring raised edges of the flange are lined up with dimples of bracket cover. Press into place


Warning: Grab bars are no stronger than the anchors or walls to which they are attached and, therefore, must be firmly secured in order to support the loads for which they are intended


Grab Bar Specifications:

* 1.2 mm (18-gauge) stainless steel tubing with satin finish
* 32mm (1-1/4) outside diameter
* Ends are heliarc welded to concealed mounting flanges

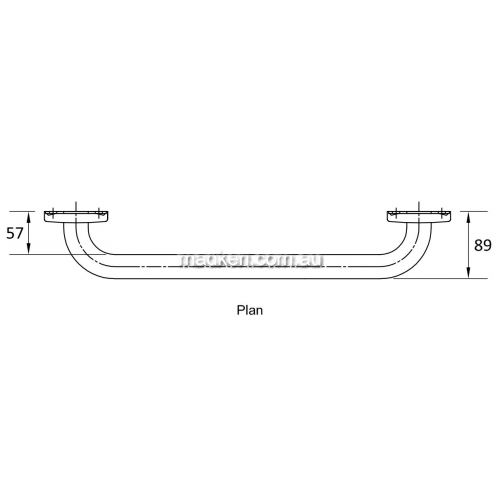

* Clearance between the grab bar and wall is 57mm (2-1/4)
* Can supports loads in excess of 113kg (1108N)


Concealed Mounting Flanges Specifications:

* 18-8 S, type-304, 3mm (1/8) thick, stainless steel plate
* End flanges 80mm (3-1/8) diameter with two holes for attachment to wall


Snap Flange Cover Specifications:

* 18-8 S, type-304, 0.8mm (22-gauge) drawn stainless steel with satin finish
* 83mm (3-1/4) diameter x 14mm (9/16) deep
* Each cover snaps over mounting flange to conceal mounting screws

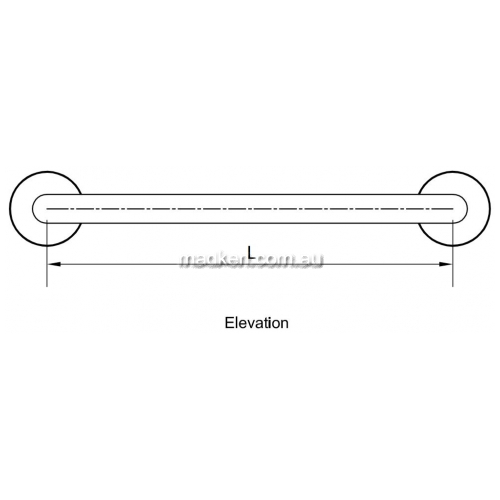

Code Size Dimensions Weight Colours
RBA4000-030 300mm L x 32mm Dia 2.00 (kgs) Satin Stainless Steel
RBA4000-045 450mm L x 32mm Dia 2.00 (kgs) Satin Stainless Steel
RBA4000-040 400mm L x 32mm Dia 2.00 (kgs) Satin Stainless Steel
RBA4000-075 750mm L x 32mm Dia 2.00 (kgs) Satin Stainless Steel
RBA4000-060 600mm L x 32mm Dia 2.00 (kgs) Satin Stainless Steel
RBA4000-090 900mm L x 32mm Dia 2.00 (kgs) Satin Stainless Steel
RBA4000-100 1000mm L x 32mm Dia 2.00 (kgs) Satin Stainless Steel
RBA4000-080 800mm L x 32mm Dia 2.00 (kgs) Satin Stainless Steel
RBA4000-120 1200mm L x 32mm Dia 2.00 (kgs) Satin Stainless Steel

Product Size, Colour and Price Options

Size Available Colours Our Price $
300mm L x 32mm Dia Satin Stainless Steel
 $52.57
450mm L x 32mm Dia Satin Stainless Steel
 $59.58
400mm L x 32mm Dia Satin Stainless Steel
 $66.59
750mm L x 32mm Dia Satin Stainless Steel
 $70.09
600mm L x 32mm Dia Satin Stainless Steel
 $73.59
900mm L x 32mm Dia Satin Stainless Steel
 $92.87
1000mm L x 32mm Dia Satin Stainless Steel
 $115.65
800mm L x 32mm Dia Satin Stainless Steel
 $124.52
1200mm L x 32mm Dia Satin Stainless Steel
 $248.82

Quantity


Select Size


Select Colour




Add Item to Cart

View My Cart

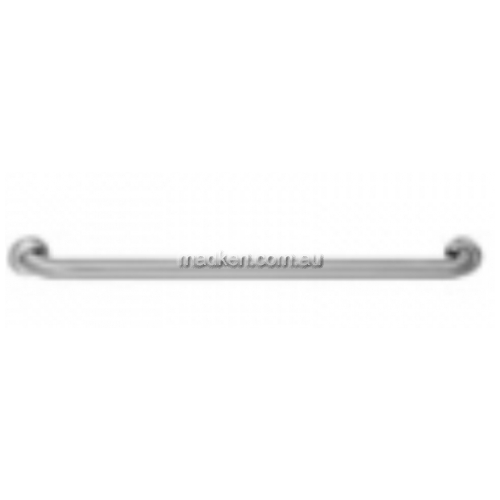

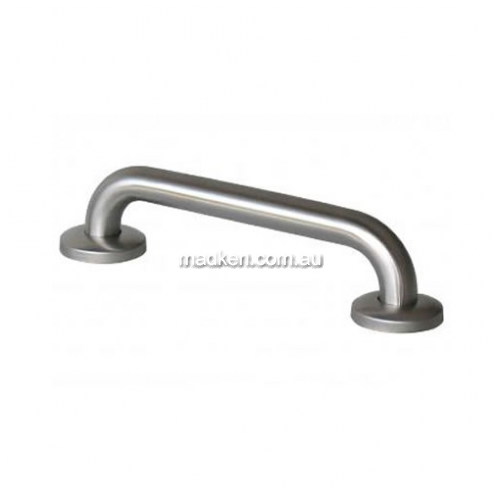

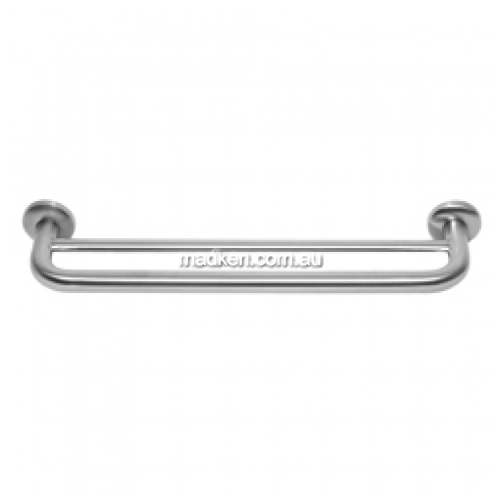

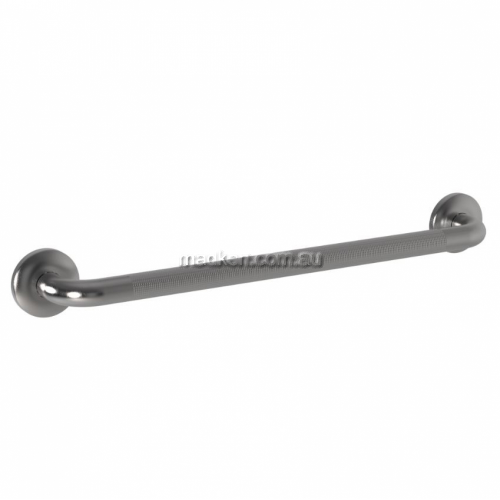

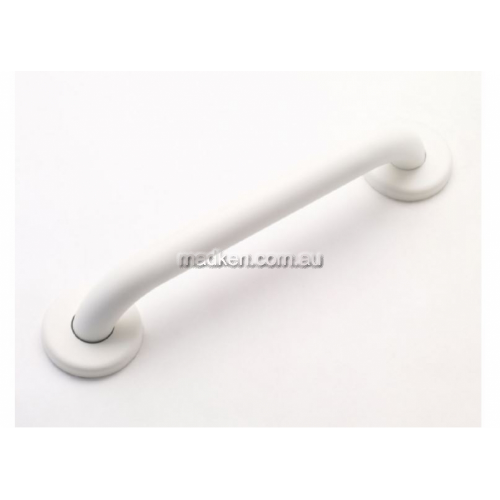

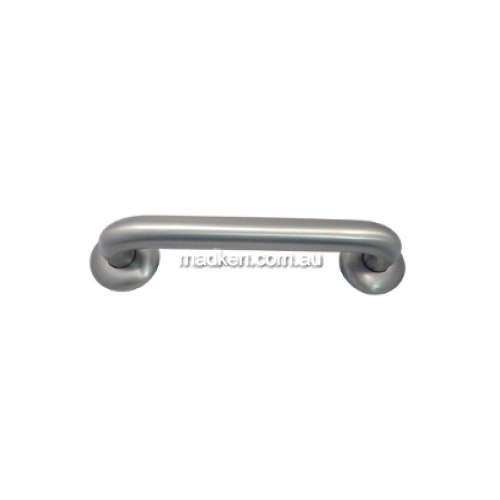

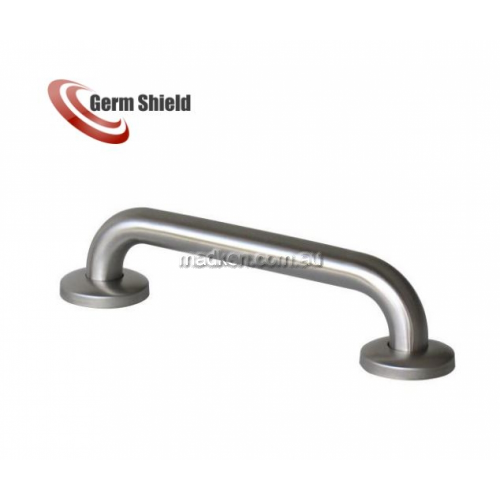

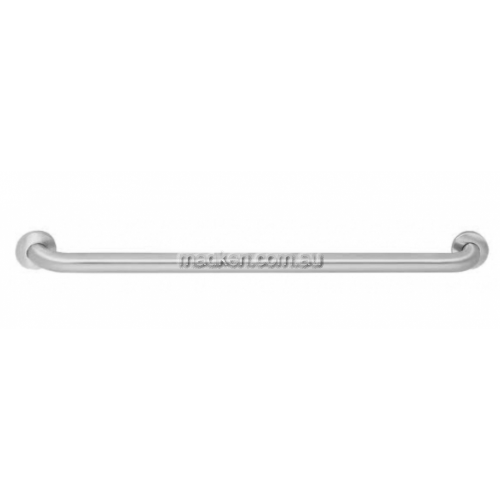

Products Similar to the Rba Rba4000 Grab Rail Straight in Grab Rails - Straight Rails
