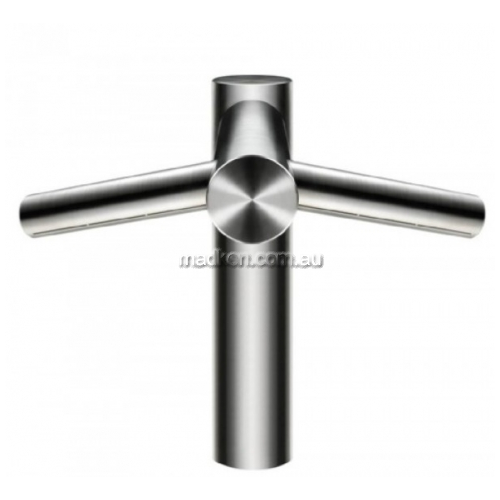

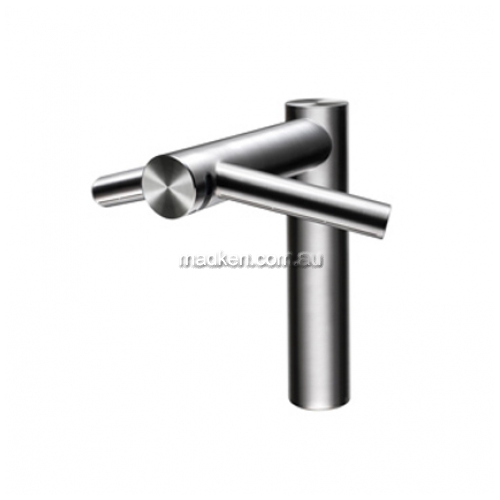

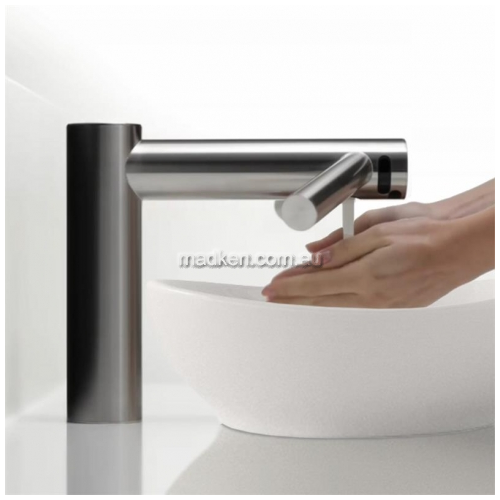

Item number - WD05


NEW PRICE, $2359.00, DOWN FROM $2664.60
DISCONTINUED ITEM FROM DYSON - PLEASE CONTACT FOR STOCK CHECK

Key Features:

Replaces old AB09 model
This new model is quieter than the old AB10 model
Improve your washroom's safety: drying your hands at the tap means there is no need to move to a separate drying area, thus avoiding dripping water on the phone
14 second drying time
Hygienic
Costs less to run (vs hand towels)
Reduce your impact on the environment
77% less expensive to run than other hand dryers
HACCP accredited and Carbon Trust certified


Product Data:

Electrical -
Input voltage: 200-240V
Frequency: 50-60 Hz
Decibel level: 81db
Rated power: 1,000 W
Motor type: Dyson digital motor - V4 brushless DC motor
Motor switching rate: 5,400 per second
Motor speed: 81,000 rpm
Operating temperature range: 0deg - 40degC
Heater type: None
Standby power consumption: Less than 0.5 W

Construction -
Tap construction: Stainless steel (brushed)
Under counter motor assembly construction: Moulded ABS (main unit)
Exterior screw type: Torx T15
Water ingress protection to IP35

Filter -
HEPA filter (glass fibre and fleece prelayer)
Bacteria removal 99.95% of particles the size of bacteria

Operation -
Touch-free infra-red activation
Hand dry time measurement: 14 seconds (Measurement based on National Sanitation Foundation Protocol P.335)
Operation lock-out period: 30 seconds
Airspeed at apertures: 430 mph
Operating airflow: Up to 21 l/s

Water operation -
Water flow rate: 4 l/min
Tap Aerator: Aerated water outlet
Tap power supply: Mains supply
Water temperature control: Thermostatic mixer recommended (not supplied)
Water pressure required: 1-8 Bar

Logistics -
Net weight: 4.6kg
Packaged weight: 6.1kg

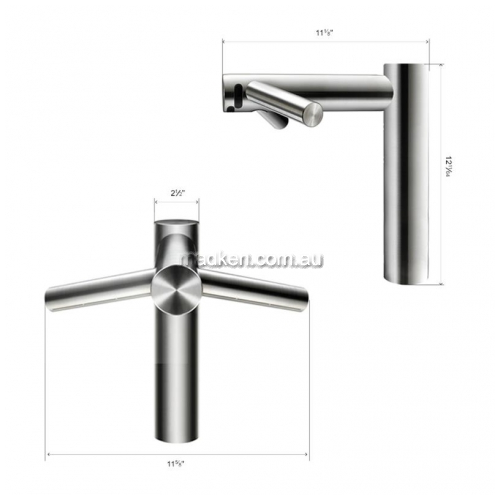

Tap dimensions: 309mm H x 286mm W x 303mm D
Motor bucket dimensions: 262mm H x 141mm W x 189mm D
Minimum 100mm installation clearance from floor
Packaged dimensions: H276 x W437 x D280 mm


Sink specification -
The Dyson Airblade Tap is compatible with most sink types.
Ensure plugs are not installed in the sinks.
Sink dimensions: All sink measurements are internal unless stated otherwise.
Width of sink - Minimum: 350mm, Front to back - Minimum: 300mm, Depth of sink - Minimum: 100mm
Maximum depth of sink for AB10 only: 200mm (External measurement of vessel sink).
Sink materials: Sinks with highly polished surfaces should be avoided e.g. shiny chrome. Porcelain or brushed metal are ok to use. When multiple taps are installed side-by-side, tap centres should be a minimum of 580mm apart.


Standard Guarantee/Warranty:

5 year guarantee


WELS 6 star, 3.5L/min, T31048



Code	Size	Dimensions	Weight	Colours
WD05	309mm H x 286mm W x 303mm D		6.00 (kgs)	Satin Nickel
