Item Number: 6087

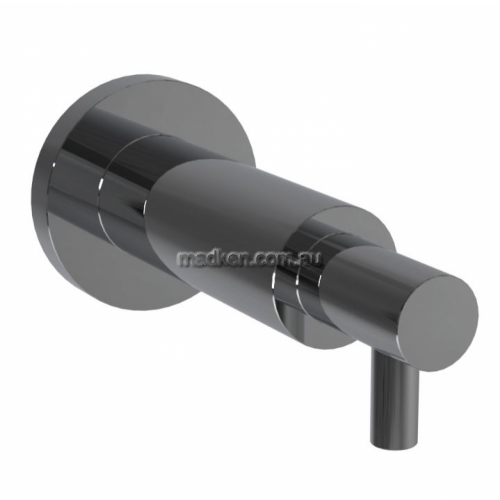

Key Features of the Bradley Elite 6087 Soap Dispenser

Wall mounted pump type
Solid brass chrome plated

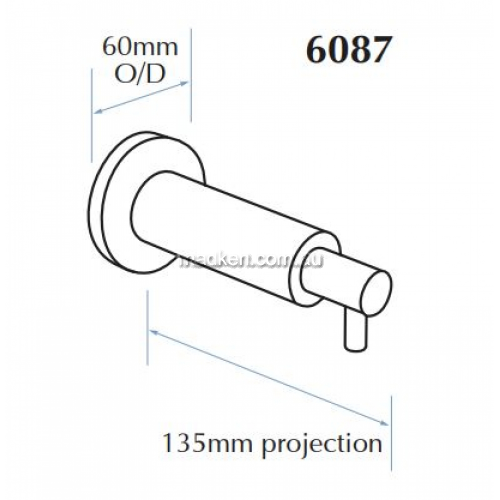

Overall Dimensions: 135mm D - Flange O/D 60mm dia.
Capacity: 5 Litres (5L bottle sold separately)


Construction:

Valve body, plunger and flange all fabricated of solid brass with bright chrome finish.
1/2 BSP threaded mounting fixture is fabricated of brass.
Internal valve is fabricated of ABS plastic (SS Spring loaded).
Hose is fabricated of flexible Silicon 6mm tubing.
Non-return valve is ABS.


Recommended Soap:

Bradley Model AM6010 AQUA MARINE 5litre Soap
PRODUCT HAS A LIFETIME WARRANTY IF AM6010 is USED. Contact us for service details


Operation:

Push plunger for measured amount of liquid soap.
Fills at reservoir. ABS non-return valve sits in base of reservoir to keep dispenser primed.
PLEASE NOTE Do not allow reservoir to empty.


Installation:

Rough-In:
1. Drill 16mm hole at centre of desired location.
2. Fix supplied 1/2 BSP x 60mm flanged nipple to brickwork, stud or frame before tiling.
3. If access behind wall is going to be difficult then plastic tube supplied should be installed from bottle (reservoir) to and through the nipple bracket leaving 200mm length past the nipple bracket.
4. Tape (electrical tape) the thread of the nipple and hose to protect them.


Planning mounting location:
1. Wall cavity should allow supply hose (plastic tube) to be serviced.
2. Soap bottle needs to be easily accessible for filling regularly when room is cleaned.
3. Bottles need to be as close as possible to dispenser (optimum distance is within 2 metres).
4. Supply hose needs to be supported so as not to sag or kink and should have a fall in the direction of the supply
bottle.
5. It is recommended that plastic supply tube be run through 25mm conduit to protect the hose and reduce the risk of kinks. This will also make for ease of replacing the tube should this be necessary in the future. Conduit should be clipped to back of the studs or wall.


Fit-Out:
1. Remove tape from thread of nipple and plastic tube.
2. Cut 1/2 BSP so that 20mm is showing past the tiled/finished wall surface.
3. Install soap bottle and fill.
4. Place plastic tube in through grommet of bottle having first cut the bottle end of the tube at 45 degrees.
5. Suck hose to bring soap close to the top of the hose, adjacent to the bracket.
6. Cut off surplus hose and clip to white plastic sleeve of dispenser with cable tie or 'o' ring (provided).
7. Screw the dispenser onto 1/2 BSP thread back to tiles. Nozzle should be pointing down.
8. Tighten two stainless steel grub screws in un-chromed section adjacent to finished wall surface.
9. Slip trim flange back to wall.
10. Slowly pump air out and soap through system.
11. Check plastic tube is correct length at bottle end.



Code	Size	Dimensions	Weight	Colours
6087	135mm Projection		1.00 (kgs)	Chrome Plated
