Item number - B3944-130


For Retrofit into dispenser models:
ConturaSeries B-43944 B-43949 manufactured prior to May 2010
ClassicSeries B-3942 B-3944 B-3947 B-3949
B-3914 Discontinued Model
ConturaSeries B-4362 Discontinued Model


TowelMate Series
Retrofits into existing Paper Towel Dispensers
Stainless Steel frame, nylon rod
Prevents tearing, tabbing, bulging, sagging and bunching of paper towels
Reduces paper wastage by 20-40 percent



MATERIALS:

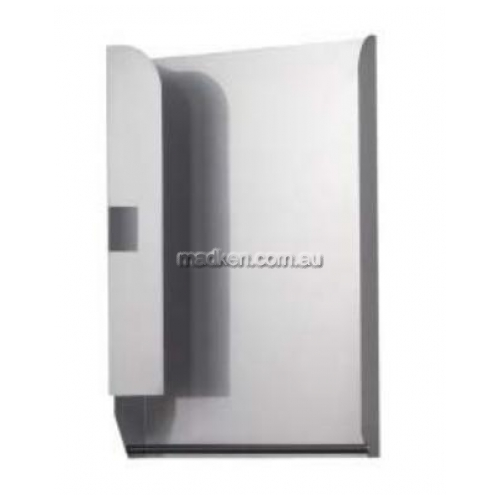

TowelMate Module - 18-8 S, Type 304, 24 gauge (0.6mm) stainless steel with 2B finish.
TowelMate Support Rod - Black, 3/8 (10mm) diameter Nylon 6/6 Rod fastened to Module with two stainless steel sheet
metal screws.


OPERATION:
Optional TowelMate Accessory fits into Bobrick Model number(s) B-3942, B-3944, B-3947, or B-3949 ClassicSeries Paper Towel Dispensers; and B-4362, B-43944, B-43949 ConturaSeries standard in units after May 2010.
TowelMate Accessory Module has towel guide angle with 90 degree return to prevent paper towels from falling forward out when door is opened for servicing.
TowelMate Accessory Support Rod allows dispenser to dispense paper towels one at a time without tabbing, tearing, bulging, sagging or bunching.
To load paper towels in towel tray, place stacks of folded paper towels inside module with bottom paper towel leaf facing forward. Feed first sheet from bottom of the towel tray opening over the rod and through the opening to conceal rod and start dispense.


INSTALLATION:
Open door of towel cabinet and remove all existing paper towels from dispenser.
Remove existing plastic towel adapter secured inside dispenser cabinet to clear unit of any obstructions.
Remove protective film from double back tape on the back of TowelMate Accessory and place Module inside towel dispenser.
Engage tabs located at bottom of TowelMate into Towel Tray slots positioning TowelMate Support Rod evenly over the towel tray opening with bottom of module resting down on inside of towel tray and firmly press TowelMate Module into dispenser cabinet back.
Load stacks of paper towel into cabinet, start dispense, close cabinet door.


SPECIFICATION:
TowelMate Accessory module shall be type-304 stainless steel with 2B finish. Black nylon support rod, 3/8 (10mm) diameter, fastened to module with stainless steel sheet metal screws. TowelMate Accessory fits into Bobrick Model number(s) B-3942, B-3944, B-3947, and B-3949 ClassicSeries Paper Towel Dispensers and other manufacturers' similar models; and B-4362, B-43944, B-43949 ConturaSeries standard in units after May 2010. Paper Towel Dispenser fitted with TowelMate Accessory shall dispense 800 multifold paper towels.


TowelMate Accessory Module has a 90 degree return towel guide angle to prevent paper towels from falling forward out when door is opened for servicing, and a TowelMate Nylon Support Rod fitted across the center of the towel tray opening to dispense paper towels one at a time without tabbing, tearing, bulging, sagging or bunching (falling through the opening). TowelMate reduces paper towel waste by 20-40 percent and complies with US EPA Reduce and Reuse Resource Conservation Initiative.

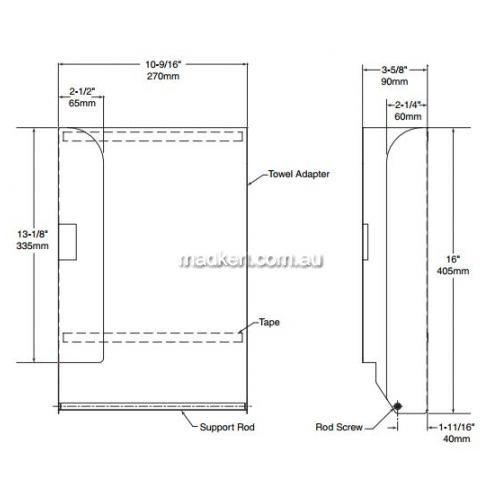

Code	Size	Dimensions	Weight	Colours
B3944-130	270mm W		1.00 (kgs)	Satin Stainless Steel
