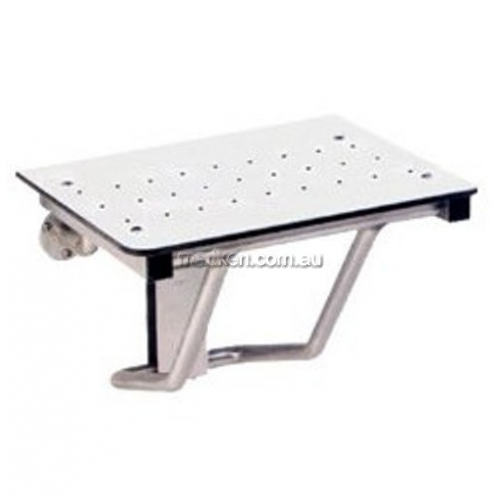

Model B819687

Solid Phenolic seat (cannot delaminate) Stainless Steel Frame and Brackets

Meets Disabled Code when properly installed

960mm [W] x 355mm [H] x 390mm [D]

MATERIALS

Seat

One-piece 1/2 (13mm) thick solidly fused plastic laminate with matte-fi nish melamine surfaces ivory-colored face sheets and black phenolic-resin core that are integrally bonded (cannot delaminate). Integral holes for water drainage. Secured to frame with stainless steel carriage bolts and acorn nuts.

Frame

18-8 S type-304 stainless steel with satin fi nish. 16-gauge (1.6mm) 1-1/4 (30mm) square tubing and 18 -gauge (1.2mm) 1 (25mm) diameter seamless tubing.

Mounting Flanges (2)

18-8 S type-304 3/16 (5mm) thick stainless steel with satin fi nish. 3 (75mm) diameter with three mounting screw holes.

Baseplate

18-8 S type-304 heavy-gauge stainless steel.

Spring

17-7 type-301 24-gauge (0.6mm) stainless steel. Spot-welded to baseplate.

Guide Bracket

18-8 S type-304 16-gauge (1.6mm) stainless steel with satin finish.

OPERATION

Shower seat can be folded up against the wall when not in use. The spring at the top of baseplate locks seat into upright position until released by pulling the top of seat away from wall. Support system with guide bracket allows varying mounting heights and leaves floor clear for easier cleaning. Nonporous solid phenolic seat has holes to permit water to drain does not splinter or require oiling and will not support growth of bacteria. Slotless round-head carriage bolts and acorn nuts provide additional safety to user. Bobrick shower seats when properly installed have suffi cient strength to sustain more than 250 pounds of force
(1112 N) complying with barrier-free accessibility guidelines for structural strength.

INSTALLATION

Secure unit to wall partition at points indicated by an S with the two mounting fl anges located at top and the baseplate and guide bracket below. The bottom of support bracket must be positioned between the baseplate and guide bracket before they are secured to wall or partition. Mounting height of shower seat must comply with local building codes.
For stud walls provide concealed backing to comply with local building codes then secure with #14 x 2-1/2 (M6 x 65mm) sheet-metal screws furnished by manufacturer.

For concrete walls provide fi ber plugs or expansion shields for use with screws furnished or provide 1/4 (6mm) toggle bolts or expansion bolts.

Designer's Note: Bobrick Screw Anchor Kit Part No. 517-22 is available as an optional accessory; order one Anchor Kit for each shower seat to be installed.
For solid-core shower partitions provide sheet-metal screws (or through-bolts nuts and washers) and concealed backing to comply with local building codes.

Caution

These shower seats are no stronger than the anchors and walls to which they are attached and therefore must be firmly secured in order to support the loads for which they are intended. Consult and comply with local building codes.

SPECIFICATION

Folding shower seat shall have a frame constructed of type-304 satin-fi nish stainless steel that consists of 16-gauge (1.6mm) 1-1/4'' (30mm) square tubing and 18-gauge (1.2mm) 1'' (25mm) diameter seamless tubing. Seat shall be one-piece 1/2 (13mm) thick solidly fused plastic laminate with matte-fi nish melamine surfaces ivory-colored face sheets and black phenolic-resin core; secured to frame with stainless steel carriage bolts and acorn nuts. Shower seat shall be equipped with two 3'' (75mm) diameter mounting fl anges constructed of type-304 3/16'' (5mm) thick satin-fi nish stainless steel; a guide
bracket constructed of type-304 16-gauge (1.6mm) satin-fi nish stainless steel; and a spring constructed of type-301 24-gauge (0.6mm) stainless steel that is spot-welded to a baseplate of type-304 heavy-gauge stainless steel. Seat shall be able to lock in upright position when not in use. Shower seat shall comply with barrier-free accessibility guidelines for structural strength.

Folding Shower Seat shall be Model B819687 of Bobrick Washroom Equipment Inc.



Code	Size	Dimensions	Weight	Colours
B819687	960mm	960mm [W] x 355mm [H] x 390mm [D]	8.00 (kgs)	Satin Stainless Steel
